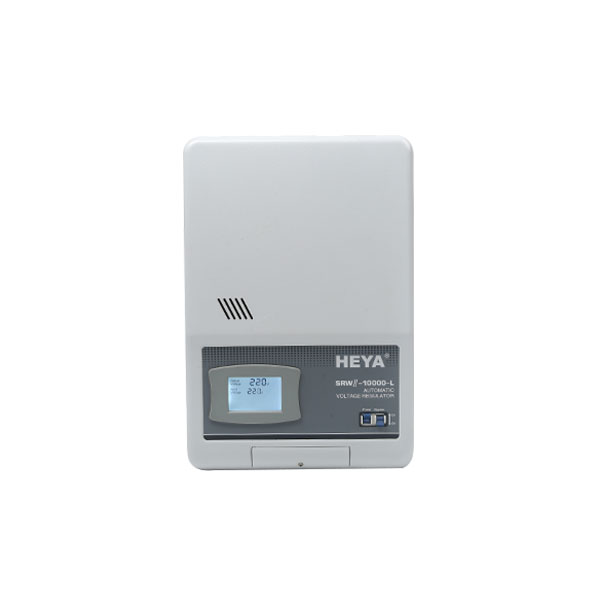

Second generation servo type intelligent LCD display full automatic AC voltage regulator
| Model | Power output | Unit(pcs) | Package size(mm) | G.W.(Kg) |
| SRWII-4000-L | 3000W | 1 | 430x330x295 | 12.20 |
| SRWII-6000-L | 5000W | 1 | 430x330x295 | 13.20 |
| SRWII-10000-L | 8000W | 1 | 510x330x295 | 19.10 |
| SRWII-12000-L | 10000W | 1 | 510x330x295 | 20.50 |
If The input voltage is in the range of 210-250v the regulator is able toprovide 100% listed maximum output power.Maximum output power Will change as the curve shown below
| Technology |
Relay Control System+Programmed control computerized + control algorithm relay“Cross zero” |
| Input voltage | AC110-275V |
| Output voltage | 220V±8% |
| Phase | Single-Phase |
| Frequency | 50-60Hz |
| Adjust time | ＜1sec.(against 10% input voltage deviation) |
| Protection over voltage | ＜250±2V |
| Protection lack voltage | ＜185V±2V |
| Delay | 8 second |
| Temperature protection | 110°C±10°C |
| Ambient temperature | -10~+45°C |
| Relative humidity | ＜90% |
| Wave form distortion | No additional wave form distortion |
| Efficiency | ＞95% |
| Dielectric strength | 1500V/min |
| Insulation resistance | ≥5MΩ |
